05Jan 2026 by robotic paint
Cyclone Spray Booth

Cyclone Spray Booth

Spray Booth

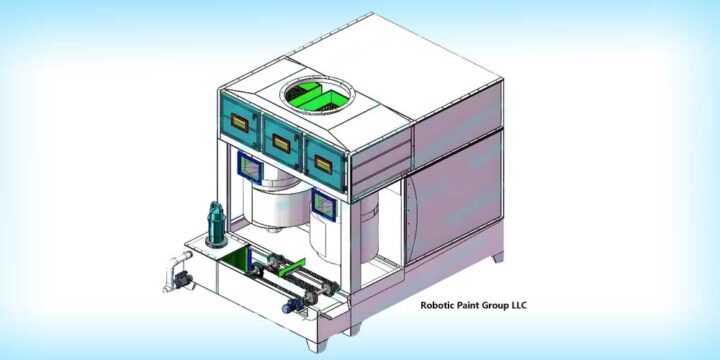

Cyclone spray booth is an industrial spray painting equipment based on airflow dynamics and centrifugal separation principles. it's used more and more for painting system for its cost effective and high efficient filtration performance. Comparing to traditional spray booth design, cyclone spray booth integrates a basic vortex water curtain and waste filter device which is normally installed separately outside workshop. Its core function is to achieve efficient paint mist capture and air purification through controllable swirling airflow. Cyclone spray booth working principles 1- Air Intake and Swirl Formation External air is forced into the top or side air intake channel of the spray booth by a fan. Under the action of guide vanes, it enters the sealed working chamber tangentially, forming a high-speed rotating vortex field. This airflow structure causes…
Read More
13Nov 2025 by robotic paint
Wet Spray Booth Options & Working Principles

Wet Spray Booth Options & Working Principles

Spray Booth
Wet or water type spray booths primarily utilize water to capture paint mist generated during the spraying process. When spray gun is triggering, the paint mist encounters the water curtain or water screen inside spray booth. The paint mist particles interact with the water, due to the viscosity and other water properties, paint mist is adsorbed into the water, thus achieving separation of the paint mist from the air. This process effectively prevents paint mist from spreading in the air, reduced the workshop pollution and protected operators' health. Working Principle of Water Curtain Spray Booth The scattered overspray paint mist is attracted by the airflow to the water curtain for purification. After further purification by spraying, the purified gas is discharged outdoors through an air-water separation device. The paint mist…
Read More
31Jul 2023 by robotic paint
6 Axis Automatic Spray Paint Booth

6 Axis Automatic Spray Paint Booth

Spray Booth
[vc_row][vc_column][vc_column_text]6 Axis Spray Paint Booth is advanced setup of a stand alone six axis painting machine. It's a full functional painting unit with a paint booth included plus a smart robot controller. It's widely compatible with a variety of painting objects within design capacity. In order to avoid any mistake, our robot controller provides a step by step simulation before we put the program in live painting production. And, this painting machine can be deeply custom desgin to meet with client side specific spraying requirements such as the product size, space limit and other mechanical or electric special etc. 6 Axis Spray Paint Booth Quick View Dimensions L2000 x W1800 x H2000 mm(can be customized)   NO. of support tray 2PCS   Support tray transfer By rotation or moving table…
Read More
12Dec 2022 by robotic paint

Automatic Car Paint Booth

Spray Booth
[vc_row][vc_column][vc_column_text] Car Paint Booth Brief Intro Automatic car paint booth is robotic device with a dry filtration spray booth and painting robots inside. In order to handle proper spraying over different car surface, robot is fixed on movable guide so can be flexible programmed. Paint booth provides a in/out track at the entrance for car transfer purpose. During spraying, the entrance door is closed and functinoal as a fully isolated system. Due to this flexible and scalable configuration, it's able to handle various automotive paint spraying requirements while maintaing a relatively low cost construction. As an integration of painting robot and spray booth, we'll introduce by two categories separately as fofllowing. Painting Robot Configuration Model R2250~2800 (by requirement)   Moving guide THK heavy load type linear guide   Pressurized air…
Read More
21Jun 2022 by robotic paint
Venturi Spray Booth

Venturi Spray Booth

Spray Booth
Venturi spray booth is a water type spray booth design by venturi principles for paint application. Under this design, the air flow will form a special votex like area behind water curtain. Waste paint will be catched in water and flow back to tank, thus very few waste air will come into atmosphere from exhausion fan. Venturi spray booth was initially developped by IWATA company for automotive coating at early ages. Venturi spray booth advantages: High efficient paint filtering Ease of cleaning and maintenance Explosion proof option Stainless steel construction for extremely long life cycle Booth specification data: Content Model VB-15D VB-20D VB-25D VB-30D VB-40D Filter Efficiency(%) Melamine resin coating 97 Nitrolac 96 Acrylic coating 93 Polyurethane coating 95 Noise (dB) 1.5m front side 84 84 85 86 88 1.5m…
Read More
24Apr 2022 by robotic paint

Automatic Paint Recycle Booth

Spray Booth
[vc_row][vc_column][vc_column_text]Spray paint booth is a basic device for paint shop configuration. Unlike powder coating system where we can re-use the powder after collection, liquid paint is not recyclable for very a long time since the date of developped. Because for the traditional booth design (either water curtain or dry filter) the over sprayed paint is either collected in water or catched on dry filter device which is not usable anymore. From technical calculation, the maximum paint application efficiency is not more than 30%, it's a big waste. Especially when the paint comes with high costs, the traditional operation is a big  waste. With RPG group, we have been doing various continuing tests and experiment over paint recycling solutions. Recently we have successfully developped a paint recycle booth which provides up…
Read More
25Mar 2022 by robotic paint
Stainless Steel Filter Spray Booth

Stainless Steel Filter Spray Booth

Spray Booth
Spray booth is a must for paint shop construction. No matter if you are going to spray painting by hand or with a robot, we have to prepare this device. A proper  booth configuration will support our job efficiently and reduce the maintenance work. Stainless steel filter booth is our newly developped product for paint application. It's not just a simple replacement of the filter material but a different working principle to catch waste paint which is up to 99% ratio efficiency. Stainless steel filter booth specifications complete stainless steel construction durable and sustainsable design ease of use and maintenance no need replacement very long life cycle The stainless steel filter booth is complete stainless steel construction including every single nut and fastener. Thus it's suitable for any type coating…
Read More
05Apr 2021 by robotic paint
Electrostatic DISK Spray Paint Booth

Electrostatic DISK Spray Paint Booth

Spray Booth
Electrostatic DISK spray paint booth is an advanced setup in coating industry. Either for it's spray gun and booth design or the special conveyor layout, it's different than any other painting system. Because of its unique advantages, Electrostatic DISK spray paint booth is widely used for those complex shaped objects high quality painting system. In this article we'll introduce each unit step by step with our actual application experience. Electrostatic DISK spray booth quick view 2—3 higher efficiency when working with painting line smooth and high density paint spraying, greatly reduced manual spray work simple operation, no special training required for quick application inverter control of gear paint pump, stable paint supply with accurate flow control PLC control of reciprocator motion, speed adjustable with 6 stations to work with different…
Read More
18Mar 2021 by robotic paint
Environment Friendly Spray Booth

Environment Friendly Spray Booth

Spray Booth
Spray booth is a crucial part for any paint spraying system. But most tradition spray booth is simple filtration by water or paper filter then exhaust out directly. In some bad conditions, the exhaust piple is working like a chimely with colorful fumes which is dangerous to atmosphere. Thus a new type spray booth is required by the industry and ther're various attempts from different companies. Here we introduce a tight size configuration which is very friendly to environment. A good spray booth setup can provide clean work environment for guaranteed spraying job but also be able to keep wasted paint inside. This evironment friendly spray booth make full use of multiple popular waste treatment techniques and finally have them all in small size configuration. The final waste air treatment…
Read More
04Aug 2020 by robotic paint

How to Select a Suitable Paint Booth?

Spray Booth, Tutorial
Paint booth is a solid requirement for paint spray. Regardless if its dry or wet, there're different ways of construction and choice of materials. From supplier side, they might just offer you a standard product. But if we know better of our actual application, we can custom make it to fit better with our production and even save some costs. So first let's see what kind of booths available. From point of view over functions, there're water curtain booth, dry filter booth and car paint booth. Each type booth provides various designs to fit with various installations. Following we will introduce each type configuration and how or when we will use the specific model. Dry filter paint booth Dry filter is a general description. In fact there're different filters to…
